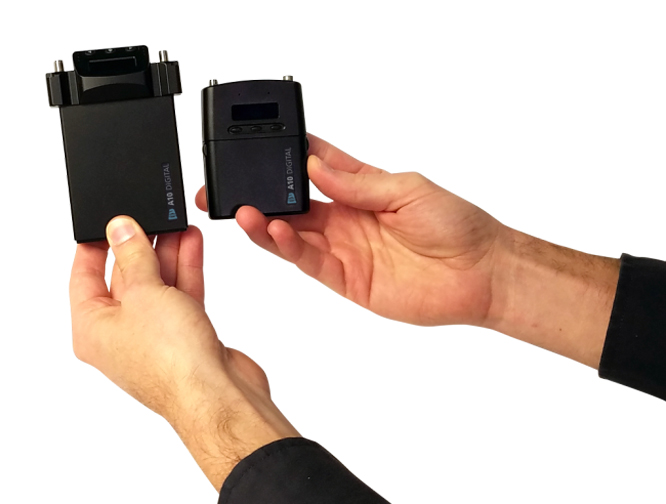

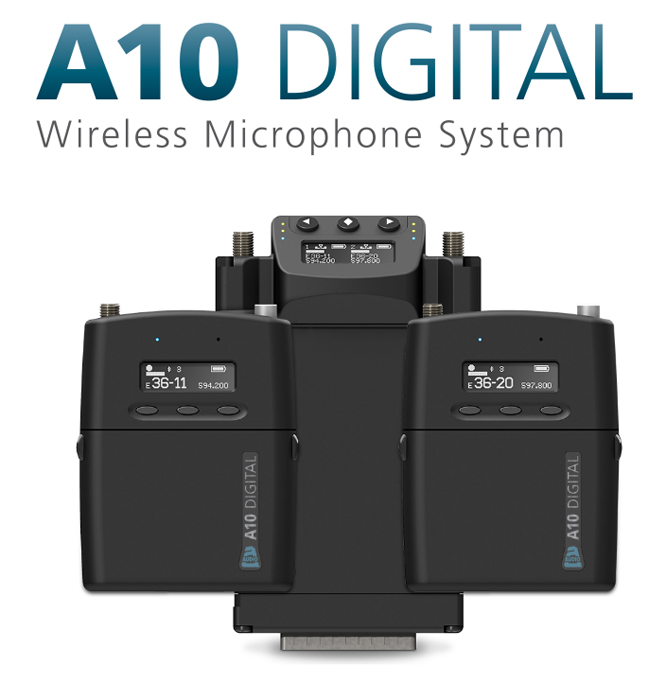

The new A10 Digital Wireless System is designed for the technical demands and requirements of today’s RF-hostile, multi-channel productions. The A10-TX bodypack transmitter and portable A10-RX receiver provide users with broadcast-quality audio, reliable digital RF performance, and easy multi-system setup. Its proprietary digital RF topology and Advanced Digital Diversity is the result of years of research, laboratory experimentation, and customer experience. The result is a wireless link with full 20 kHz audio bandwidth, high dynamic range, ultra-low distortion, and industry leading 2 millisecond end-to-end delay.

The A10 Digital Wireless System operates in the 470 MHz to 694 MHz UHF band (frequency ranges are country-dependent). Its spectrally efficient digital modulation enables up to twenty A10 Digital Wireless Systems to simultaneously operate in a single 8 MHz TV channel. Multiple simultaneous systems operate without compromising RF range, audio quality, or latency.

Great Audio Quality

  • All-digital RF transmission for zero companding artifacts and ultra-low
    distortion 20 kHz audio
  • Extremely low latency - best in class 2 mS
  • Fully balanced, broadcast quality mic preamp with analogue limiter

Best-in-Class Digital RF Technology

  • Super wideband UHF receiver tuning - over 224 MHz (470 MHz–694 MHz)
  • 20 simultaneous channels per 8 MHz bandwidth, 15 channels per 6 MHz
  • Fully legal ETSI/FCC spectral mask, meets present and upcoming standards
  • Excellent range, equivalent to the best analogue systems
  • Advanced Digital Diversity System selects the best RF signal among the two diversity receivers and combines signals in challenging RF environments

Integrated Recording

  • Built-in digital recorder and high-precision timecode generator in the A10-TX transmitter
  • Records timecode-stamped files to removable microSD cards
  • Timecode generator can be jam synced from external clock source, and maintain timecode for hours without batteries
