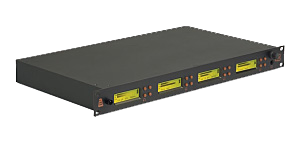

RACK RX2040

Rack RK2040 is an affordable and attractive alternative for manufacturers competing solutions.

This compact 1U, 19-inch rack is capable of accommodating up to four diversity receivers - the minimum specification unit has two receivers. Additional receiver modules can be purchased separately. Each receiver has an individual LCD display, showing RF levels for both sides of the diversity, audio level, low transmitter battery level and name, frequency and audio output level for each artist.

Each receiver has 32 pre-programmed frequencies and an increased switching bandwidth of up to 24MHz. Includes a built-in active distribution amplifier to allow all four receivers (or up to eight by cascading two racks) to be fed from one set of antennae.

Up to 24 racks can be linked together with only one cable needed to link to the PC. So up to 92 receivers can be monitored over one cable. The software to monitor the racks is included in the price.
