SONOSAX SX-BD1 is a microphone preamplifier optimised for boompole sound recording.

This product allows the soundperson to recover his autonomy and to place his microphone on the right spot at the right time while providing the best possible sound recording. The device has been designed to accomodate the best microphones on the market. Developped specially by SCHOEPS for the SX-BD1, the SONOSAX M4 Microphone can be delivered with it.

SONOSAX offers also a choice of complete sets including a microphone, SX-BD1, a boompole and all necessary accessories for a given application type. Ideal complement to the new lightweight equipment for video or digital cinematography, SX-BD1 is distributed worldwide by SONOSAX or its net of authorised dealers.

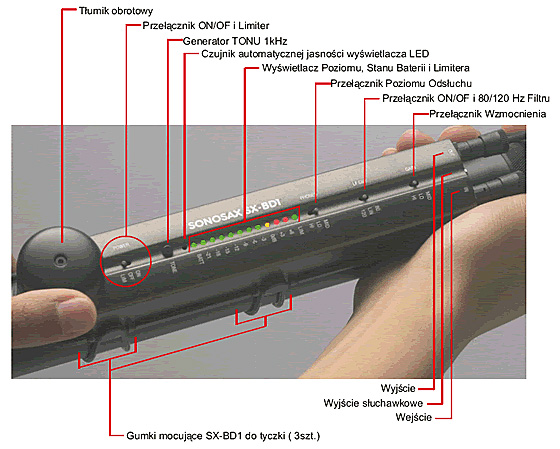

PREAMPLIFIER'S OPERATE AND CONTROL

KEY FEATURES:

• Very High Quality Microphone Preamplifier.
• Phantom Powering.
• Input Gain Selector (+20 dB, +46 dB, +72 dB).
• Low Frequency Cut Filter (80 ou 120 Hz).
• Opto-electronic Limiter already prized on other SONOSAX devices.
• Headphone Connector with 3-position Monitoring Level Selector.
• Ergonomic Design (Level Setting by rotating fader naturally handled with the thumb).
• 12 LED Level Display, with automatic variable brightness according to the ambient light.
• Output compatible with all equipments (DAT, mixer, broadcast and consumer camcorders, MiniDisc, wireless transmitters, etc.)
• Built-in1 kHz Reference Tone Generator.
• Powered by just 4 AAA batteries.
